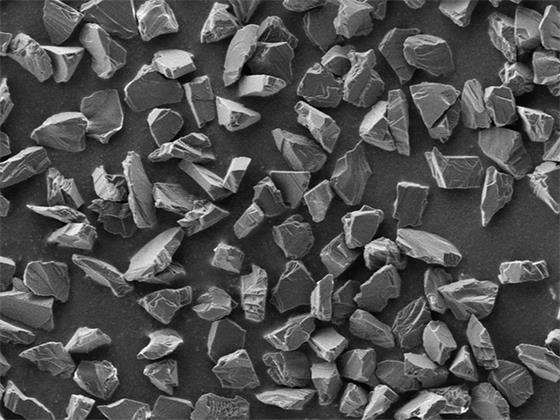

Using medium-strength diamond as raw material, processed by a special crushing process, without shaping. The particle size concentration is general, the shape is very irregular, and it has very sharp edges and corners.
Using medium-strength diamond as raw material, processed by a special crushing process, without shaping. The particle size concentration is general, the shape is very irregular, and it has very sharp edges and corners.
Due to its medium strength and sharp edges, it is suitable for the manufacture of diamond tools with certain strength and sharpness requirements, and free grinding processing that requires high removal rates.
| Model
Grit |
0-0.25 | 0-0.5 | 0-1 | 0.5-1 | 0.75-1.25 | 1-1.5 | 1-2 | 1-3 | 2-3 | 2-4 | 2-5 | 3-6 | 4-6 | 4-8 | 5-10 | 6-12 | 8-12 | 8-16 | 10-18 | 10-20 | 12-22 | 15-25 | 20-25 | 20-30 | 22-36 | 20-40 | 30-35 | 30-40 | 35-45 | 40-50 | 45-55 | 40-60 | 45-70 | |
| D50（microns） | 0.1-0.2 | 0.2-0.4 | 0.4-0.6 | 0.6-0.8 | 0.9-1.1 | 1.1-1.3 | 1.3-1.5 | 1.6-2.0 | 2.0-2.3 | 2.4-2.9 | 2.9-3.5 | 3.5-4.3 | 4.3-5.3 | 5.3-6.1 | 6.2-7.6 | 7.6-8.7 | 8.8-9.9 | 10-11.2 | 11.3-13 | 13.1-15.4 | 15.5-17.5 | 17.6-19.3 | 19.4-21.9 | 22-25 | 25-27 | 27-30 | 30-34 | 34-36 | 36-39 | 39-43 | 43-46 | 46-49 | 49-55 | |
| JBM-I | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ||
| ★Available | ||||||||||||||||||||||||||||||||||
| ☆Customizable | ||||||||||||||||||||||||||||||||||
