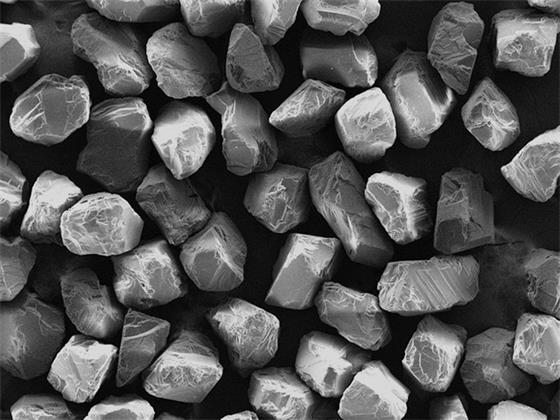

JBM-HB Diamond Micron Powder

The raw material is Yellow MBD grade diamond grits from ZND 2210. It featured with sharp or blocky Particle Shape, monocrystalline structure, concentrated particle size distribution, low magnetic susceptibility, low impurities and high toughness. Perfect for solar wafer diamond wire saw, diamond wire drawing dies, PCD dies, grinding and polishing high-hardness materials such as stones, cemented carbide, ceramics, gems, and optical glass.

Email [email protected]
WhatsApp / Phone +86 18039211068

SEND Inquiry  Chat Online 

Features

Using medium-strength diamond as raw material, through special crushing technology, shaping. The particle size is highly concentrated and the shape is block.

Suggested Use

Suitable for manufacturing diamond polycrystalline, composite sheet and high-end grinding and polishing diamond tools.

Specification

Model Grit	0-0.25	0-0.5	0-1	0.5-1	0.75-1.25	1-1.5	1-2	1-3	2-3	2-4	2-5	3-6	4-6	4-8	5-10	6-12	8-12	8-16	10-18	10-20	12-22	15-25	20-25	20-30	22-36	20-40	30-35	30-40	35-45	40-50	45-55	40-60	45-70
D50（microns）	0.1-0.2	0.2-0.4	0.4-0.6	0.6-0.8	0.9-1.1	1.1-1.3	1.3-1.5	1.6-2.0	2.0-2.3	2.4-2.9	2.9-3.5	3.5-4.3	4.3-5.3	5.3-6.1	6.2-7.6	7.6-8.7	8.8-9.9	10-11.2	11.3-13	13.1-15.4	15.5-17.5	17.6-19.3	19.4-21.9	22-25	25-27	27-30	30-34	34-36	36-39	39-43	43-46	46-49	49-55
JBM-HB	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★	★
★Available
☆Customizable
